Configuration

Flux Networks Extended has a single config file, on the server side and synced to the players. Its values are in FE per tick.

File

Minecraft Where
1.21.1 (NeoForge) config/fluxnetworksextended-server.toml. For one world only, copy it to <world>/serverconfig/ and edit that copy.
1.20.1 (Forge) <world>/serverconfig/fluxnetworksextended-server.toml, created with each world. Modpacks put their defaults in defaultconfigs/.

Capping the basic devices

By default, Flux Networks' own Plugs and Points are untouched: existing networks keep working as before. A server that wants the tiers to matter can turn on capBasicDevices: the basic devices then move at most basicMaxLimit (2,500,000 FE/t by default), Bypass Limit included, and higher rates need the tiered devices.

  • The limit stored in each basic device is kept: turning the cap off again restores it.
  • Their GUI limit field stops at the cap, and The One Probe and Jade show it.

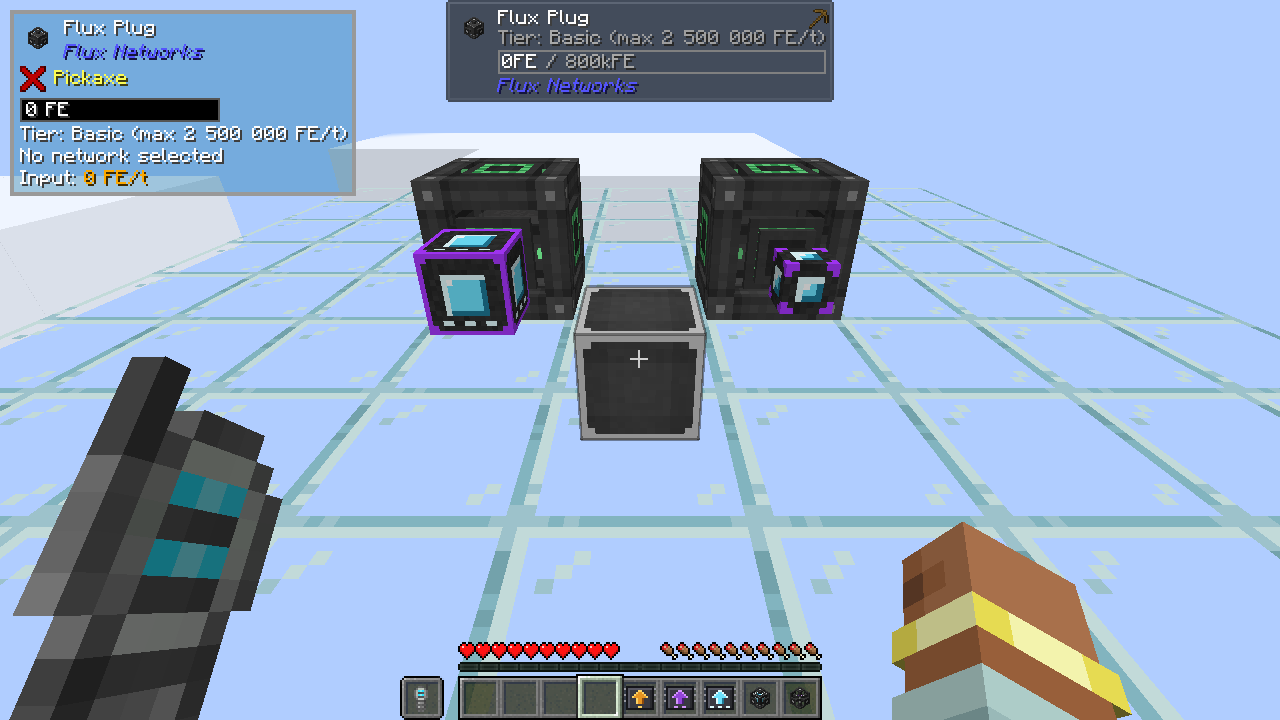

A basic Flux Plug with the cap on, seen with The One Probe and Jade

Why 10¹⁵ FE/t at most

Every limit in this file, and the Ultimate max limit, stops at 10¹⁵ FE/t. Flux Networks adds up the transfers of a network in 64-bit numbers: devices with no limit on Mekanism creative energy cubes would overflow these sums and stop the whole network (reported upstream). 10¹⁵ FE/t leaves room for thousands of devices at full rate.

Options

[tiers]

Transfer limits of the tiered Flux Plugs and Points, in FE per tick.

[tiers.herculean]

Option Default Range or values Description
defaultLimit 5000000 0 ~ 1000000000000000 Transfer limit of a newly placed device
maxLimit 20000000 1 ~ 1000000000000000 Highest transfer limit of a device, "Disable Limit" included. At most 1000000000000000 so that Flux Networks' network sums cannot overflow

[tiers.gargantuan]

Option Default Range or values Description
defaultLimit 50000000 0 ~ 1000000000000000 Transfer limit of a newly placed device
maxLimit 200000000 1 ~ 1000000000000000 Highest transfer limit of a device, "Disable Limit" included. At most 1000000000000000 so that Flux Networks' network sums cannot overflow

[tiers.ultimate]

Option Default Range or values Description
defaultLimit 1000000000 0 ~ 1000000000000000 Transfer limit of a newly placed device
maxLimit 1000000000000000 1 ~ 1000000000000000 Highest transfer limit of a device, "Disable Limit" included. At most 1000000000000000 so that Flux Networks' network sums cannot overflow

[basic]

Flux Plugs and Points from Flux Networks itself

Option Default Range or values Description
capBasicDevices false Cap the basic Flux Plugs and Points at basicMaxLimit, "Disable Limit" included, so that higher transfer rates need the tiered devices. Off by default: existing networks keep working as before. The limit set in each device is kept, so turning this off again restores it.
basicMaxLimit 2500000 1 ~ 1000000000000000 Highest transfer limit of a basic Flux Plug or Point when capBasicDevices is on
